Creating a new Resource Node

About this guide

This tutorial will guide you through the process of creating a new harvestable material. The tutorial will assume that you know your way around some basics of the Unreal Dev kit and also how to make the actual item in the ItemTable. This example also will not teach you how to create an actual mesh and destructible - instead, we will be using existing meshes from inside the game for that.

Note: If you want to create a new item and put it into the tables but without creating an actual new resource-node, you can skip to the "Adding resource to loot-tables" part, which will take you directly to the section where you can take an item and put it into pre-existing nodes.

Process

Picking a mesh

A quick search for "gem" results in a number of the radium gems being available and so for this guide, we’ll use this as an example to create a new resource called “Jade”.

There aren't any decent green looking nodes, so I am taking the "SM_rock_resource_Iron_02" mesh and making a copy of it in order to use another material on it.

In order to make this look a bit more like jade, we're going to need to switch the material for it for a new one - this isn't just a visual change; we are doing this in order to link the new texture to a Physical-Material, which is where the engine links the node to the resources it should drop.

  1. First, make a copy of both the mesh and the material the mesh uses (you will also need to do this for the "SM_white_radium_gem" mesh for the diamonds.

  2. Second, make the mesh use the material you just copied.

  3. Thirdly, link the new material to a texture that looks something like the one you want - in our Gold example, we are using a copy of the same basic texture but tinted green.

Note: Make sure that both the new rock and the materials are in the mod-folder, or they won't get baked into the .pak file for the mod.

With all the basic copying of reequired resources done, we're ready to assign a physical material.

Assigning a Physical Material

The physical material is an entry that determines how the material behaves and links to what resources are granted to the player when harvesting the resource node.

If you double-click on your material, you can see that it is currently linked to the Ore_Iron physical material.

Create new physical materials for the Gold and Diamond nodes by right-clicking in your folder in the content browser and select

New / Physics / Physical Material

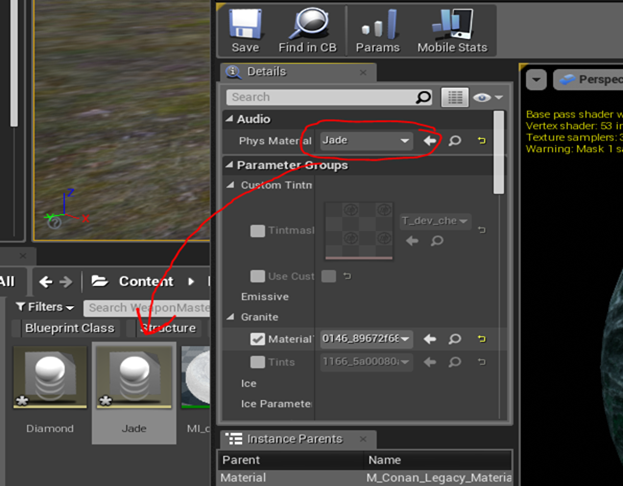

Now that we have physical materials for both our nodes, assign them to the material we made before.

Our work is almost done now.

Assigning the mesh to a foliage type

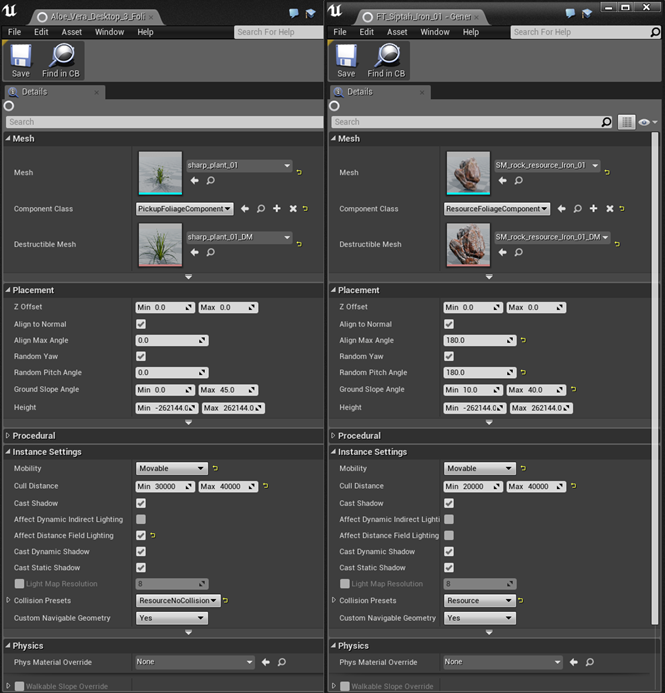

The mesh you have created also needs a foliage type for it to be painted correctly. Depending on if your foliage is a Pickup or Harvestable foliage, they will need to be set up as such in the foliage.

In this guide we will not go through every single option for foliages (there are quite a lot of them) but most of them should be relatively easy to understand even at a glance.

Adding resource to loot-tables

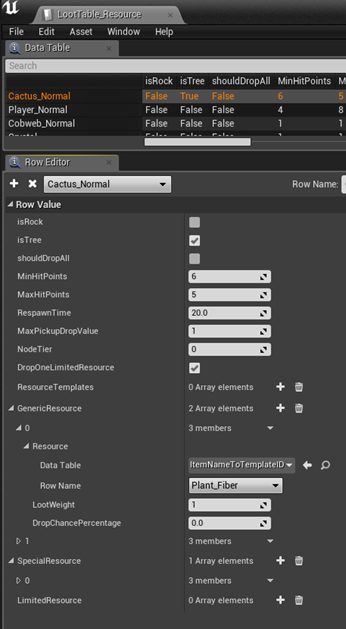

Open the "LootTable_Resource" table and create a new entry here. This entry must have the same row-name as our created physical material.

It may be worth going over this table in detail to explain what is going on here.

isRock - this should be clicked if the resource is harvested like a rock

isTree - likewise, if the resource is a tree, this should be clicked

shouldDropAll - Uncertain what this is, we've never used it

MinHitPoints - the minimum amount of hits that the resource can take before depleted

MaxHitPoints - the maximum amount of hits that the resource can take before depleted

RespawnTime - the time it takes for the node to respawn

MaxPickupDropValue - leave this as is, it's not used

NodeTier - defaults to 0, which allows any tier of any tool to harvest it, we'll get into this later. In the actual game, we don't do anything with this except for star metal.

DropOneLimitedResource - If this is checked the system will make certain that at least one limited resource drops, regardless of the dropchance for it

A quick note about ResourceTemplate/ - The resource template dropdown is optional and for our purposes we don't need it. It is used to set up global templates for certain monster types so that it is easier to assign loot to new monsters.

We won't need to edit this for our purposes right now but if you are creating a new monster and have a new item that you would like to use the same template as, say, spiders, you can select the spider template from this and your monster will drop all the things defined in that template (in addition to the extra items you assign below).

GenericResource /

This part of the loot-table defines which resources are given out for every chop on the resource. The LootWeight and the DropChancePercentage entries here doesn't matter and you can safely leave it at 1/0.

Note that all the loot-tables go through the ItemNametoTemplateID table, which means that if you have created a new item, you will need to create entries for these in that table and add it through the mod-controller.

SpecialResource /

This part of the loot-table is a standard loot-table. You can enter as many resources here as you like, and assign a DropChancePercentage to them.

LimitedResource /

As with SpecialResource, this allows you to select any amount of resources to drop here, but - they are limited by the MaxDropAmounts value. Typically things like unique items or heads are set to MaxDropAmounts=1 here.

Dis/Allowing specific harvesting tools

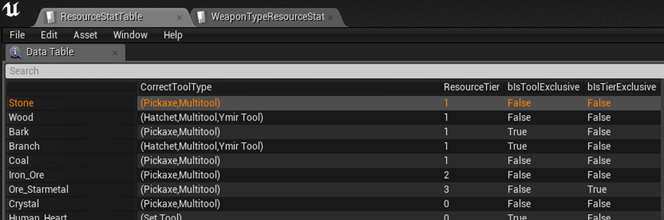

You may want only specific tools to have access to your new resource. In our case, we want to only allow pickaxes to be used on the Jade node. For this, you will need to add a new entry to the ResourceStatTable.

This table should be somewhat self-explanatory, but let's go through the options available in this table.

TableRow - This is the unique entry for the item. This needs to match the PhysicalMaterial.

CorrectToolType - This determines what tools are allowed for the resource. Note that you may have multiple tools with access to the resource

ResourceTier - This is used if you want the resource to only be available of tools of a specific Item Tier (see below)

blsToolExclusive - Check this if you want the resource to only be allowed for the specific tools listed in CorrectToolType. Note: There have been some issues with this functionality, which led to the implemntation of a second table called "WeaponTypeResourceStatTable", more about this table below.

blsTierExclusive - Check this if you want the resource to only be harvestable by tools of a specific Item Tier. Item tier can be set up in the ItemTable. Usually the tier list goes like this: 0)Any tier, 1) Iron, 2) Steel, 3) Anything above steel

Whitelisting resources

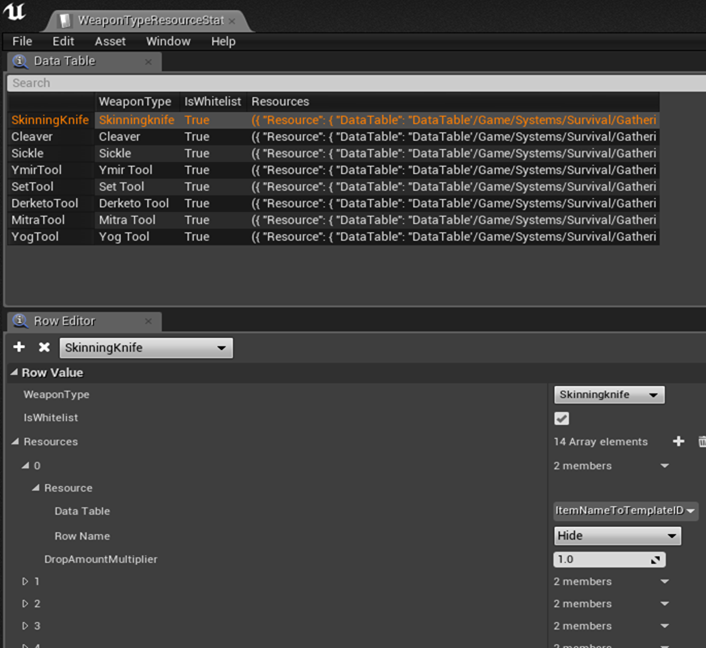

In addition to making tools exclusive, you may also want to whitelist resources. This can be done in the WeaponTypeResourceStatTable.

Here you can set up a whitelist for each tool, should you need to.

Painting resources

Now that we have set up the resources, it's time to actually paint them into the world.

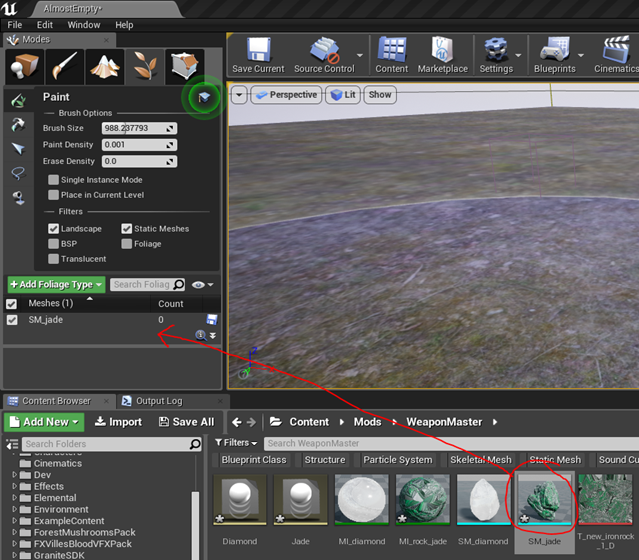

In the Modes tab, select the foliage brush (see image on the right).

With this brush, you can paint foliage actors in the world.

You will need to drag your foliage into the "Meshes" section of the foliage and make sure that you have it selected.

Also worth noting is that you may want to first unselect any other potential brushes in the list before painting.

This guide won't detail the functionality of Foliage painting as such, but there is a comprehensive guide to Foliage in Unreal here:

https://docs.unrealengine.com/en-us/Engine/Foliage
